API settings

The first step in setting up integration is enabling access to the Yeastar PBX API and activating Extensions and Trunks.

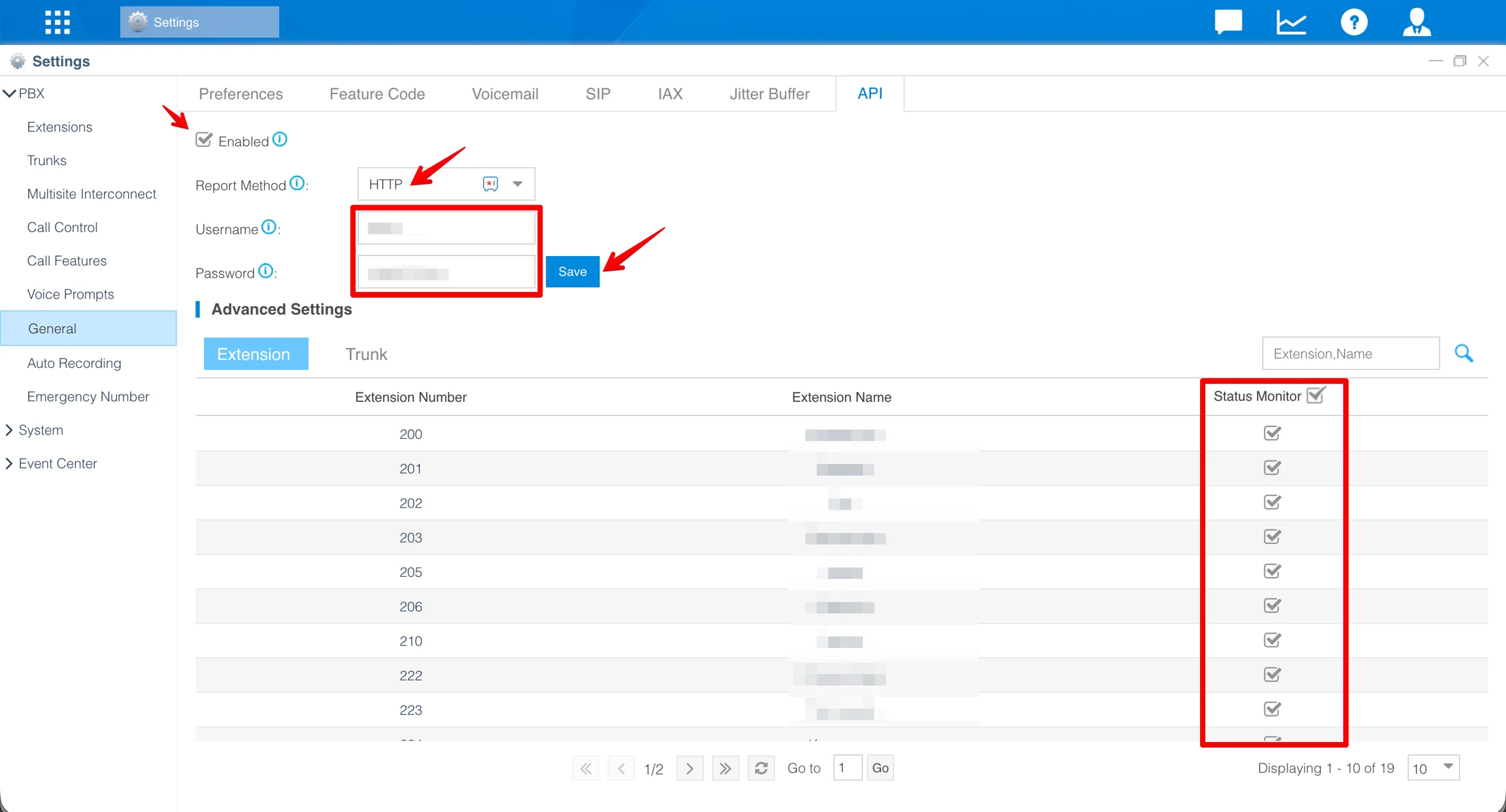

Open the PBX admin panel and go to the section Settings – PBX – General, then go to the tab API and configure the following:

  • Tick Enabled
  • Select Report Method — HTTP
  • Change the standard User name and Password. These user name and password should be entered in the module settings of Bitrix24 side.
  • In the tab Extension, in the field Status Monitor, tick for extension numbers of employees, whose calls should be integrated with CRM Bitrix24.
Enabling API for Extensions

Then go to the tab Trunk, and tick the lines, whose calls should be integrated with CRM Bitrix24.

Enabling API for Trunks

After this, you can go to the PBX Network Service Settings.
